EN12966 M Series VMS


Model:VMS-10M-RGB / VMS12M-RGB / VMS16M-RGB / VMS20M-RGB / VMS25M-RGB / VMS31.25M-RGB

Variable Message Sign is designed to be highly visible and readable, even in low-light conditions and heavy traffic conditions. ChainZONE uses large and bright LED displays with clear and concise text to ensure the information displayed is straightforward, providing important information to drivers and other road users through a flexible and effective communication method.

EN12966 Fixed Installation VMS Features:
-Reliable SMD LED technology
-Modular design for convenient maintenance
-Integrated sensors for temperature and brightness detection
-ChainZONE’s patented ball-shaped lens technology
-The reflection of sunshine is greatly reduced, ensuring optical contrast ratio and delivering more clear images. Delicate color management technology, excellent display quality
-The embedded system can perform constant diagnosis and report error status to the central system in time
-The VMS can be monitored by the central management system which is developed independently by ChainZONE’s R&D team
-High luminance ratio of LED modules
-Unique rear design-fast and better heat dissipation in VMS

Certification:
EN12966, ETL, CETL

VMS Display Board Application:

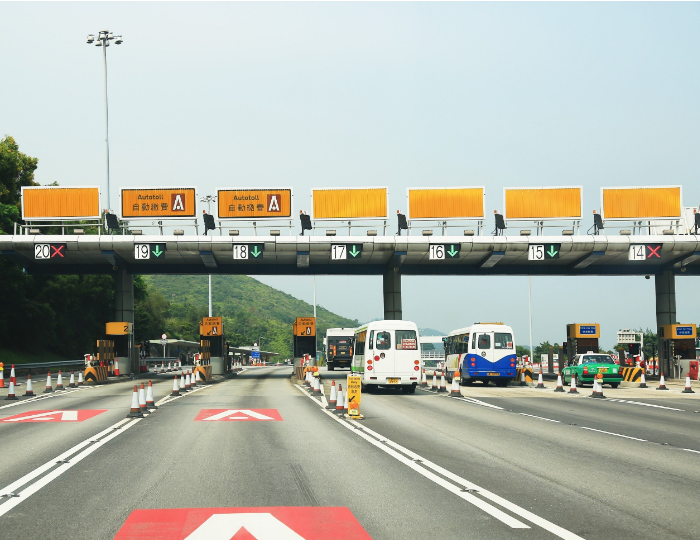

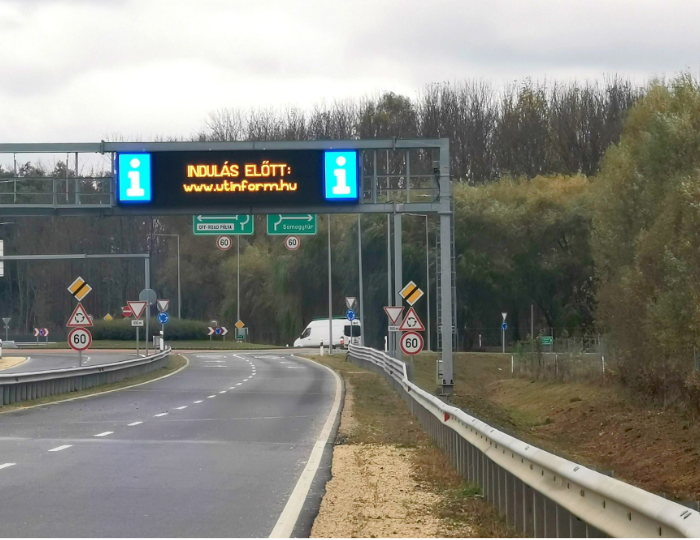

The variable message sign is a useful media to alert motorway users when there are abrupt changes in traffic patterns, road conditions, emergencies or special events. The application of VMS on the road can improve traffic flow while ensuring the safety of drivers and passengers. Variable message signs are ultra-bright and highly legible, with a variety of functions for many applications: lane closure, highway construction, work zone, parking lot guidance, and etc. A combination of different colours and sizes make these signs extremely efficient in conveying safety messages to the road users.



High luminance ratio of LED modules
Chainzone's module design with ball-shaped optical lens for higher Luminance Ratio: Reduce the reflection of sunshine and deliver more visible images on VMS.
VMS can reach luminance ratio R3 dass under low brightness at low power consumption.

Unique rear design-fast and better heat dissipation in VMS
Heat generated by electronic components on the circuit boards is dissipated to the open air directly.
Extraordinary thermo- stability and environment-adaptability.
High IP Level.
en12966 fixed installation vms

Model VMS 10M-RGB VMS 12M-RGB VMS 16M-RGB VMS 20M-RGB VMS 25M-RGB VMS 16M-RGB
Pixel Pitch(mm) 10 12 16 20 25 31.25
Module Resolution (pixels) 12x24(B7) 16X32(*) 8X16(B7) 16X32(*) 8x16(*)(B7) 8X16 8X16 8X16
Size of Module (mm)(HxW) 120x240 160x320 96x192 192x384 128x256 160x320 200x400 250x250
optical Characteristics
Conformity
Luminance Red > 3100 cd/m2  Green > 3720 c/m2  Yellow> 7440 cd/m2  White > 12400 cd/m2
Luminance Ratio R3
Colour C2
Beam Width B1,B2,B3,B4,B5,B6,B7
Brightness Control 100 levels
Physical Characteristics
Enclosure Material Aluminum
Enclosure Surface Powder Coated,Matte Black (Other Colors available)
Working Temperature (c) T1 (-15C to +60C): T2 (-25C to +55 ℃);T3(-40C to +40C)
Humidity Range RH<95%
Pollution D3
Mechanical Protection P1(IP44),P2(IP54),P3(IP56),IP65,IP66
Maintenance Front/Back Maintenance
Electrical Specifications
Power Supply AC:85- 140V/180-26OV (50/ 6OHz)
Solar Power System DC12V/ 24V
Communication RS232/RS485/Ethernet via R45/ GPRS/3G/4G/Optic Fiber
Protocol NTCIP 1203/ MODBUS/UTMC/XML/JETFILE /Profibus/RSMP
EMC/ FCC Certification Compliant with EN50293;FCC Part 15B:2017;ICES-003:2016
Certification EN12966,ETL CETL
