Name: Traffic Light Controller
Availability: InStock

Chainzone's Traffic Signal Controller Series

Note: We offer four distinct Traffic Signal Controller series to meet different application needs.

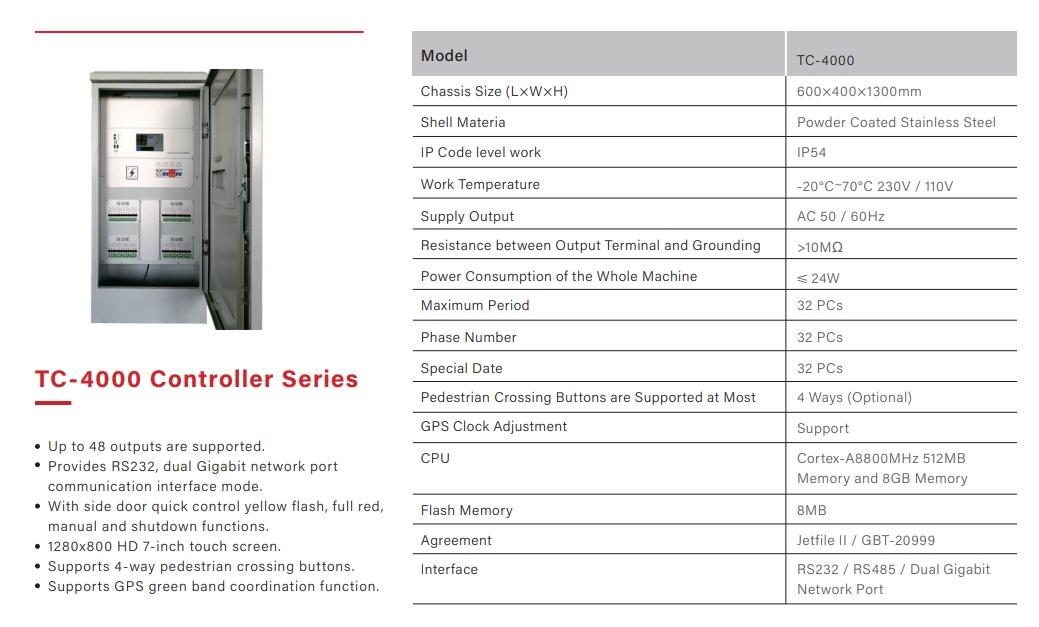

Up to 48 outputs are supported.
Provides RS232, dual Gigabit network port communication interface mode.
With side door quick control yellow flash, full red, manual and shutdown functions.
1280x800 HD 7-inch touch screen.
Supports 4-way pedestrian crossing buttons.
Supports GPS green band coordination function.

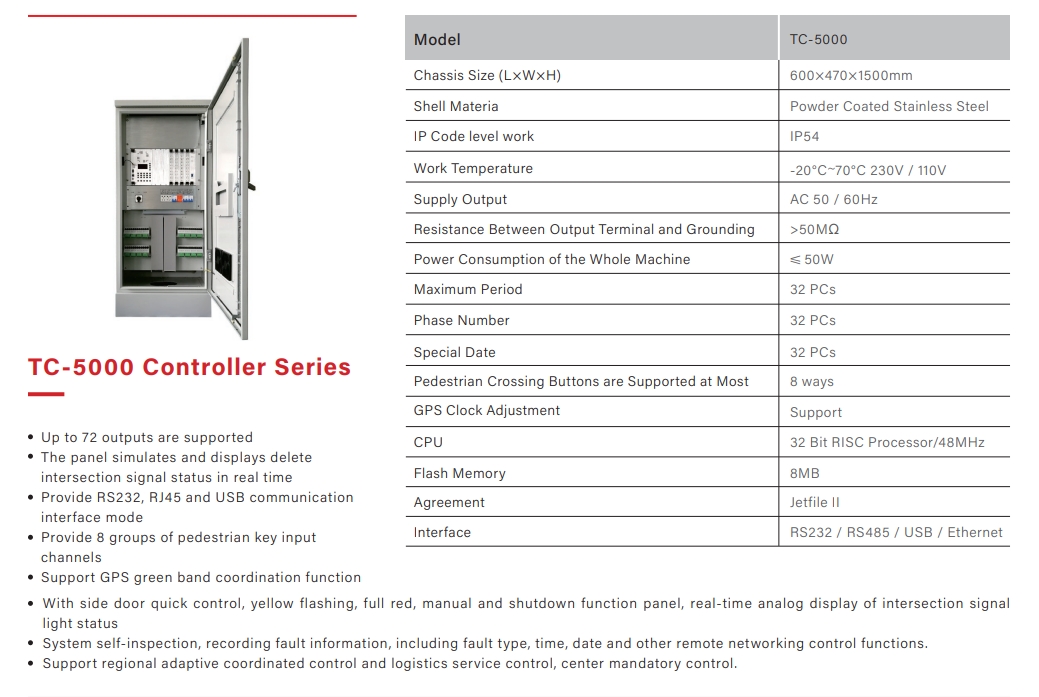

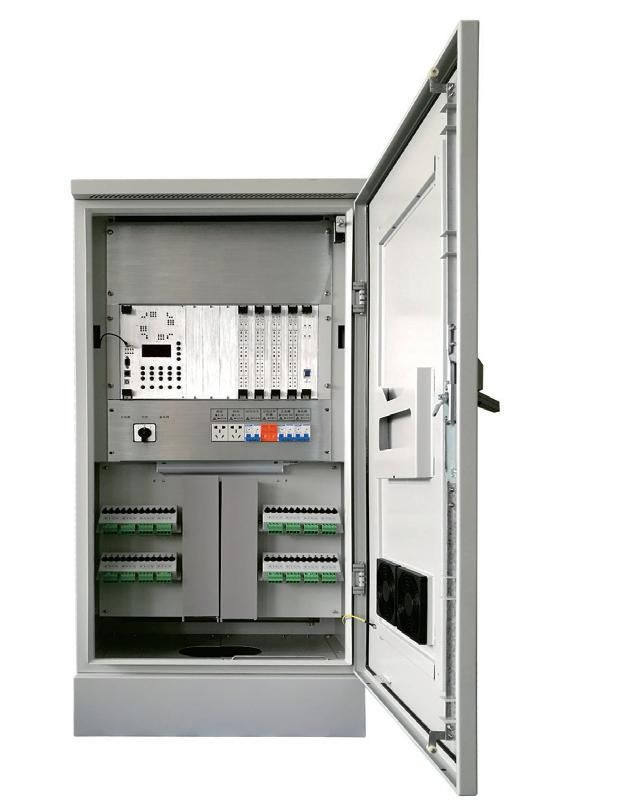

Up to 72 outputs are supported.
The panel simulates and displays intersection signal status in real time.
Provide RS232, RJ45 and USB communication interface mode.
Provide 8 groups of pedestrian key input channels.
Support GPS green band coordination function.
With side door quick control, yellow flashing, full red, manual and shutdown function panel, real-time analog display of intersection signals light status.
System self-inspection, recording fault information, including fault type, time, date and other remote networking control functions.
Support regional adaptive coordinated control.

Separated design: the main controller is separated from the signal driver modules, easier for installation, maintenance and testing.
Vehicle flow collector, pedestrian passage controller and main controller are individual modules, which can be collected according to different requirements.

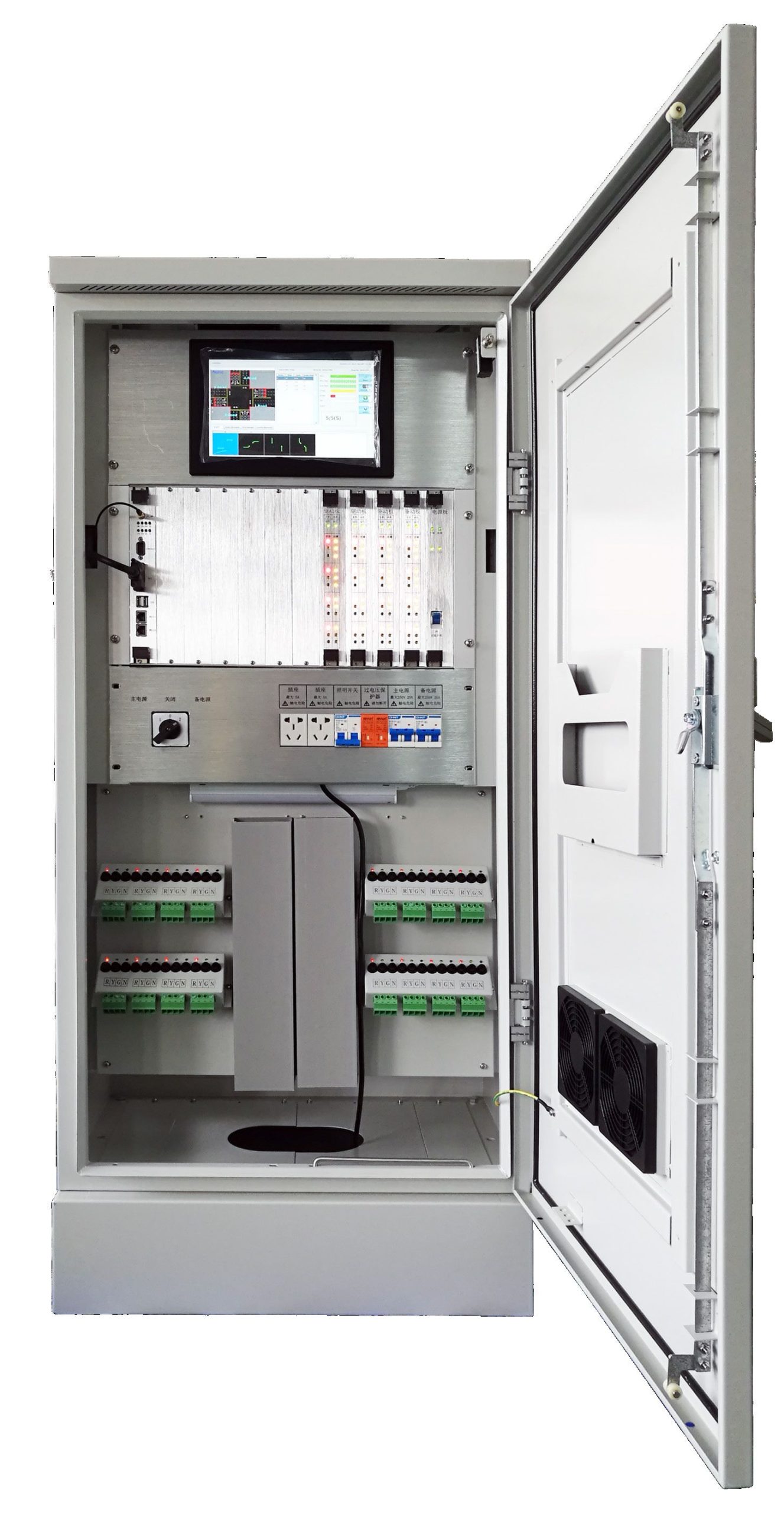

TC-7000 System

High-Performance Processor and Display

TI ARM Cortex-A8 1G industrial processor with onboard 512MB memory and 8GB storage
1280x800 10-inch capacitive touch screen

Advanced Signal Lamp Detection and Driver System

High-speed and accurate signal lamp true RMS current detection technology (50 Sa/S, 0–1A)
Dual gigabit network ports enable parallel open-circuit detection of signal lamps and independent access for background server and video traffic flow detection
Modular signal lamp driver design — up to 10 modules and 120 outputs
Output modules feature self-recovery fuses; short-circuit faults automatically recover without replacing the 8-way pedestrian crossing control machine
Dual power supply design enhances system fault tolerance
Red and green signal light power supply has independent switch; automatically cuts off in case of short-circuit fault to prevent traffic accidents

Comprehensive Traffic Flow Detection

48-route circular traffic flow detector supports traffic flow, vehicle speed, vehicle type classification, headway, occupancy, and other parameters

Intelligent Software and Protocols

Compatible with NTCIP communication protocol
Operating system and SQL database based on Linux 4.0
Supports parallel operation of 5 virtual intersections, each with independent time periods and operation schemes
Second-level records design — logs light state, current, temperature, and faults every second

Timing and Data Management

GPS and NTP dual timing for accurate synchronization
SD card data automatic backup and recovery function enables quick replacement of faulty motherboard

TC-7000 System

Module	TC-7000
Chassis Size (LxWxH)	600x470x1500mm
Enclosure Material	Powder Coated Stainless Steel
Ingress Protection Class	IP54
Work Temperature	-20℃ ~ +70℃
Supply Output	110VAC / 230VAC (50/60Hz)
Main Control Panel Display Screen	1280x800 LCD Screen and Capacitive Touch Screen
Maximum Period	32 pcs
Phase Number	32 pcs
Special Date	32 pcs
Maximum Number of Signal Lamp Output Channels	120 channels
Maximum Number of Coil Type Traffic Detectors Supported	48 channels
Pedestrian Crossing Buttons are Supported at Most	8 channels
GPS Clock Adjustment	GPS and NTP Dual Timing
CPU	TI ARM® Cortex™ A8 (1GHz) Processor
Flash Memory	512MB
Protocol	JetfileII / GBT-20999 (Design of Operating System and SQL Database Based on Linux 4.0)
Communication	RS232 / RS485 / Dual Gigabit Network Port
